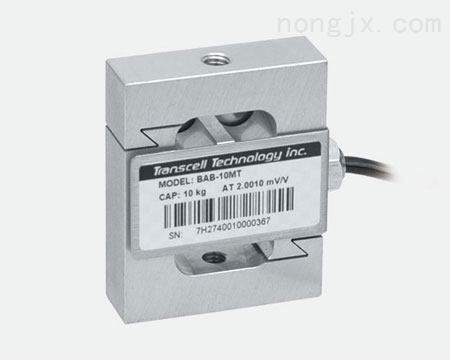

 美国Transcell BSA-50kgS型称重传感器量程采用优质合金钢材质，安装简便、快速,稳定可靠； Transcell BSA S型称重传感器量程适用于材料试验机、配料秤、机电结合秤和包装秤等；推荐激励电压是10V DC/AC，美国传力传感器大激励电压15V DC/AC，Transcell BSA S型称重传感器的导线颜色有Red(+E) Black(-E) Green(+S) White(-S)，额定输出为2.0mV/V ±0.1% / 3.0mV/V ±0.1%，零点平衡±1% of rated output 。Transcell BSA S型称重传感器热销型号：BSA-25kg , BSA-50kg , BSA-100kg , BSA-250lb。
Transcell BSA技术参数
|
Rated Output
|
额定输出
|
2.0mV/V ±0.1% / 3.0mV/V ±0.1%
|
|
Zero Balance
|
零点平衡
|
±1% of rated output
|
|
Creep after 30 minutes
|
蠕变
|
±0.03% of rated output
|
|
Nonlinearity
|
非线性
|
±0.03% of rated output
|
|
Hysteresis
|
滞后
|
±0.03% of rated output
|
|
Repeatability
|
重复性
|
±0.03% of rated output
|
|
Temp. effect on output
|
灵敏度温漂
|
≤0.002% of applied output/oC
|
|
Temp. effect on zero
|
零点温漂
|
≤0.002% of rated output/oC
|
|
Safe Temp. Range
|
可用温度范围
|
-10oC to + 70oC
|
|
Temp. Compensated
|
温度补偿范围
|
-10oC to + 40oC
|
|
Safe Overload
|
安全载荷
|
150%
|
|
Input Impedance
|
输入阻抗
|
387 ohm ± 20 ohm
|
|
Output Impedance
|
输出阻抗
|
350 ohm ± 5 ohm
|
|
Insulation Resistance
|
绝缘阻抗
|
≥5000 M ohm (50V DC)
|
|
Rated Excitation
|
推荐激励电压
|
10V DC/AC
|
|
Maximum Excitation
|
大激励电压
|
15V DC/AC
|
|
Cable Length
|
导线长度
|
6m
|
|
Cable Color Code
|
导线颜色
|
Red(+E) Black(-E) Green(+S) White(-S)
|
