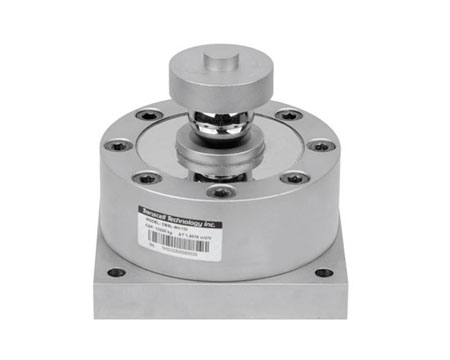

美国传力Transcell称重传感器DBSL-SH 称重模块

合金钢结构；可直接安装在地上或者基础；使用轮辐式DBSL-SH传感器；适用于仓储秤和配料秤等；

Features 主要特点
●  Alloy steel construction throughout
●  Mounts to floor or structural support directly
●  DBSL-SH (spoke type load cell) installed
●  Suitable for warehouse & inventory monitoring and batching systems,etc.
●  合金钢结构
●  可直接安装在地上或者基础
●  使用轮辐式DBSL-SH传感器
●  适用于仓储秤和配料秤等
Capacities 量程
●  15t
Specification 技术参数
Rated Output 额定输出 2.0mV/V ±0.1%
Zero Balance 零点平衡 ±1% of rated output
Creep after 30 minutes 蠕变 ±0.03% of rated output
Nonlinearity 非线性 ±0.03% of rated output
Hysteresis 滞后 ±0.03% of rated output
Repeatability 重复性 ±0.03% of rated output
Temp. effect on output 灵敏度温漂 ≤0.002% of applied output/oC
Temp. effect on zero 零点温漂 ≤0.002% of rated output/oC
Safe Temp. Range 可用温度范围 -10oC to + 70oC
Temp. Compensated 温度补偿范围 -10oC to + 40oC
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 387 ohm ± 20 ohm
Output Impedance 输出阻抗 350 ohm ± 5 ohm
Insulation Resistance 绝缘阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Maximum Excitation 大激励电压 15V DC/AC
Cable Length 导线长度 3m
Cable Color Code 导线颜色 Red(+E) Black(-E) Green(+S) White(-S)
