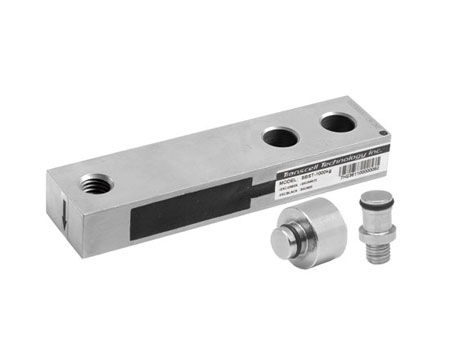

美国传力Transcell称重传感器 传力SBST 悬臂梁传感器

悬臂梁式；优质不锈钢材质；高精度；高稳定性；安装简便、快速；高输入阻抗；适用于包装秤和配料秤等；

Features 主要特点
 Single ended shear beam load cell
 Senior stainless steel
 High accuracy
 High stability
 Easy to install
 High input resisitance
 Suitable for backage systems and batching systems, etc.
 悬臂梁式
 优质不锈钢材质
 高精度
 高稳定性
 安装简便、快速
 高输入阻抗
 适用于包装秤和配料秤等
Capacities 量程
 200kg, 500kg, 1000kg, 2000kg
Specification 技术参数
Rated Output 额定输出 2.0mV/V ±0.1%
Zero Balance 零点平衡 ±1% of rated output
Creep after 30 minutes 蠕变 ±0.03% of rated output
Nonlinearity 非线性 ±0.03% of rated output
Hysteresis 滞后 ±0.03% of rated output
Repeatability 重复性 ±0.03% of rated output
Temp. effect on output 灵敏度温漂 ≤0.002% of applied output/oC
Temp. effect on zero 零点温漂 ≤0.002% of rated output/oC
Safe Temp. Range 可用温度范围 -10oC to + 70oC
Temp. Compensated 温度补偿范围 -10oC to + 40oC
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 1100 ohm ± 20 ohm
Output Impedance 输出阻抗 1090 ohm ± 5 ohm
Insulation Resistance 绝缘阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Maximum Excitation 大激励电压 15V DC/AC
Cable Length 导线长度 3m
Cable Color Code 导线颜色 Red(+E) Black(-E) Green(+S) White(-S)
