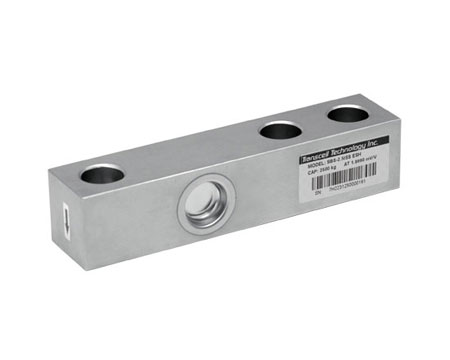

美国传力Transcell称重传感器 传力SBS-ESH 悬臂梁传感器

悬臂梁式；优质不锈钢材质；全密封焊接；高精度；高稳定性；安装简便、快速；适用于平台秤、搅拌站、皮带秤和配料秤等；

Features 主要特点
●  Single ended shear beam load cell
●  Senior stainless steel
●  All sealed by welding
●  High accuracy
●  High stability
●  Easy to install
●  Suitable for floor scales, blending & mixing systems, belt scales and batching Systems, etc.
●  悬臂梁式
●  优质不锈钢材质
●  全密封焊接
●  高精度
●  高稳定性
●  安装简便、快速
●  适用于平台秤、搅拌站、皮带秤和配料秤等
Capacities 量程
? 500kg, 750kg, 1000kg, 1500kg, 2000kg, 2500kg, 5000kg
Specification 技术参数
Rated Output 额定输出 2.0mV/V ±0.1%
Zero Balance 零点平衡 ±1% of rated output
Creep after 30 minutes 蠕变 ±0.03% of rated output
Nonlinearity 非线性 ±0.03% of rated output
Hysteresis 滞后 ±0.03% of rated output
Repeatability 重复性 ±0.03% of rated output
Temp. effect on output 灵敏度温漂 ≤0.002% of applied output/oC
Temp. effect on zero 零点温漂 ≤0.002% of rated output/oC
Safe Temp. Range 可用温度范围 -10oC to + 70oC
Temp. Compensated 温度补偿范围 -10oC to + 40oC
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 387 ohm ± 20 ohm
Output Impedance 输出阻抗 350 ohm ± 5 ohm
Insulation Resistance 绝缘阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Maximum Excitation 大激励电压 15V DC/AC
Cable Length 导线长度 6m
Cable Color Code 导线颜色 Red(+E) Black(-E) Green(+S) White(-S)
