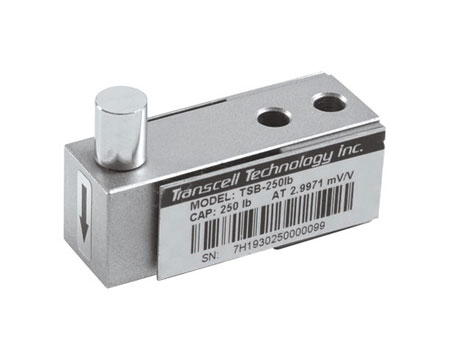

美国Transcell传感器TSB

悬臂梁式；优质合金钢材质；高精度；高稳定性；安装简便、快速；表层镀镍防腐处理；适用于皮带秤和配料秤等；

产品特点和优势
Features 主要特点
Single ended shear beam load cell
Senior aluminum
High accuracy
High stability
Easy to install

Suitable for hopper scales, tank & bin weighing, belt scales, etc.
悬臂梁式
优质铝合金材质 高精度
高稳定性
安装简便、快速
适用于料斗秤、罐装秤、皮带秤等

Capacities 量程? 150lb, 250lb
Specification 技术参数
Rated Output 额定输出 3.0mV/V ±1%
Zero Balance 零点平衡 ±1% of rated output
Creep after 30 minutes 蠕变 ±0.03% of rated output
Nonlinearity 非线性 ±0.03% of rated output
Hysteresis 滞后 ±0.03% of rated output
Repeatability 重复性 ±0.03% of rated output
Temp. effect on output 灵敏度温漂 ≤0.002% of applied output/oC
Temp. effect on zero 零点温漂 ≤0.002% of rated output/oC
Safe Temp. Range 可用温度范围 -10oC to + 70oC
Temp. Compensated 温度补偿范围 -10oC to + 40oC
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 387 ohm ± 20 ohm
Output Impedance 输出阻抗 350 ohm ± 5 ohm
Insulation Resistance 绝缘阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Maximum Excitation 大激励电压 15V DC/AC
Cable Length 导线长度 1.5m
Cable Color Code 导线颜色 Red(+E) Black(-E) Green(+S) White(-S)
