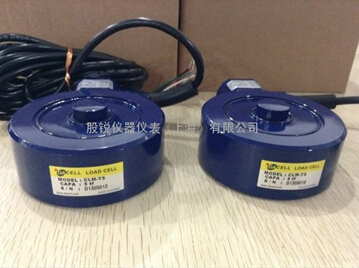

| CLM-T5传感器 |
| 发布人：admin 发布时间：2015-08-04 |
|
|
|
低截面压缩传感器，高强度合金钢和隔膜密封全焊接结构
料斗, 罐秤称重。防护等级 IP67
|
|
|
|
|
|
|
|
|
|
规格
|
参数值
|
|
CLG
|
CLH
|
额定量程(R.C)
|
500kgf, 1tf, 2tf, 5tf, 10tf, 20tf, 50tf, 100tf, 200tf, 300tf, 500tf
|
500kgf, 1tf, 2tf, 5tf, 10tf, 20tf, 50tf
|
|
额定输出(R.O)
|
2mV/V±0.1%
|
2mV/V±0.1%
|
|
非线性
|
0.05% of R.O.(100tf, 200tf : 0.1%)
|
0.02% of R.O.
|
|
滞后
|
0.05% of R.O.(100tf, 200tf : 0.1%)
|
0.02% of R.O.
|
|
重复性
|
0.03% of R.O.(100tf, 200tf : 0.05%)
|
0.02% of R.O.
|
|
零点平衡
|
±2% of R.O.
|
±2% of R.O.
|
|
额定输出温度影响
|
0.05% of LOAD/10℃
|
0.03% of LOAD/10℃
|
|
零点平衡温度影响
|
0.05% of R.O./10℃
|
0.03% of R.O./10℃
|
|
补偿温度范围
|
-10~60℃
|
|
可用温度范围
|
-10~70℃
|
|
输入阻抗
|
350 ±30Ω
|
|
输出阻抗
|
350 ±30Ω
|
|
绝缘电阻
|
2000MΩ
|
|
可用电压
|
10V
|
|
安全过载
|
150% R.C
|
|
导线长度
|
Φ7mm 4core,3m
|
|
|
|
|
|
量程
|
ΦA
|
B
|
ΦC
|
D
|
E
|
ΦF
|
G
|
H
|
RI
|
重量(kg)
|
|
500kgf (4.903KN)
|
88
|
30
|
16
|
1.5
|
M6x1 DP10
|
70
|
119
|
5
|
60
|
1.8
|
|
--1tf (9.807KN)
|
98
|
46
|
22
|
1.5
|
M8x1.25 DP12
|
80
|
129
|
7
|
60
|
26
|
|
--2tf (19.61KN)
|
98
|
46
|
22
|
1.5
|
M8x1.25 DP12
|
80
|
129
|
7
|
60
|
|
--5tf (49.03KN)
|
98
|
46
|
22
|
1.5
|
M8x1.25 DP12
|
80
|
129
|
7
|
60
|
|
-10tf (98.07KN)
|
118
|
65
|
24
|
11
|
M8x1.25 DP12
|
98
|
149
|
7
|
80
|
3.8
|
|
-20tf (196.1KN)
|
157
|
65
|
34
|
11
|
M8x1.25 DP12
|
120
|
188
|
10
|
100
|
8
|
|
30tf (294.2kN)
|
187
|
75
|
50
|
16
|
M12×1.75 DP20
|
150
|
218
|
10
|
140
|
14
|
|
-50tf (490.3KN)
|
187
|
75
|
50
|
16
|
M12x1.75 DP20
|
150
|
218
|
10
|
140
|
14
|
|
100tf (980.7KN)
|
278
|
120
|
74
|
37
|
M12x1.75 DP20
|
240
|
309
|
15
|
160
|
45
|
|
200tf (1.961MIN)
|
320
|
170
|
100
|
63.5
|
M16x2 DP20
|
270
|
351
|
15
|
250
|
85
|
|
300tf (2.942MIN)
|
396
|
195
|
140
|
68.5
|
M16x2 DP20
|
330
|
361
|
15
|
320
|
180
|
|
500tf (4.903MIN)
|
430
|
200
|
150
|
68.5
|
M20x2.5 DP25
|
360
|
391
|
20
|
320
|
220
|
|
|
|
|
|
|
|
|
|
|
