| UMM-K10传感器 |
| 发布人：admin 发布时间：2015-08-04 |
|
|

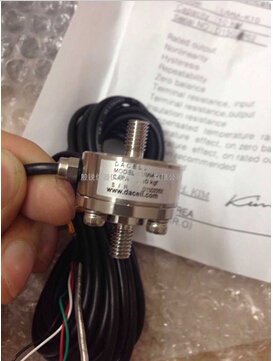

UMM-K10传感器
|
|
|
|
Specifications
|
Accuracy
|
|
UMM & UMMA
|
|
Rate
|
capacity (R.C)
|
1kgf, 2kgf, 5kgf, 10kgf, 20kgf, 50kgf, 100kgf, 200kgf
|
|
output (R.O)
|
0.7~2mv/v
|
|
Nonlinearity
|
0.1% of R.O.
|
|
Hysteresis
|
0.1% of R.O.
|
|
Repeatability
|
0.1% of R.O.
|
|
Zero balance
|
±2% of R.O.
|
|
Temperature
effect
|
on rated output
|
0.1% of LOAD/10℃
|
|
onzzero balance
|
0.05% of R.O./10℃
|
|
Temperature
range
|
compensated
|
-10 ~ 70℃
|
|
safe
|
-10 ~ 80℃
|
|
Terminal
resistance
|
input
|
350 ±30Ω
|
|
output
|
350 ±2Ω
|
|
Insulation resistance bridge/case
|
2000MΩ
|
|
Excitation recommended
|
5V
|
|
Safe overload
|
120% R.C
|
|
Cable length
|
Φ3.4core shield cable, 2m
|
|
|
|
|
|
|
|
|
|
|
