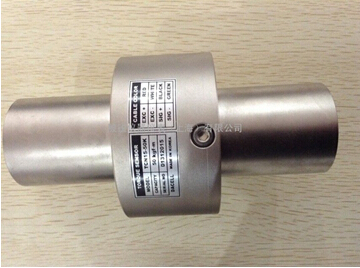

TCN15-50k扭矩传感器
|
|
静态扭矩传感器测量,扭矩的静态对象或在一定角度旋转.
适用于转矩测量各种汽车配件、气动和电动螺丝刀等
|
|
|
|
|
|
|
|
|
|
规格
|
Accuracy
|
|
额定量程(R.C.)
|
2kgf-cm??100kgf-cm (0.196~N-490.3N-m)
|
|
额定输出(R.O.)
|
1.5mV/V±1% (2kgf-cm~5kgf-m : 1mV/V)
|
|
非线性
|
0.3% of R.O.
|
|
滞后
|
0.2% of R.O.
|
|
重复性
|
0.1% of R.O.
|
|
可用电压
|
10V DC
|
|
温度补偿范围
|
0.3% R.O./10℃
|
|
可用温度范围
|
0.2% LOAD/10℃
|
|
安全过载
|
120% R.O
|
|
|
|
|
|
量程
|
A
|
B
|
C
|
φD
|
E
|
F
|
G
|
|
2kgf-cm (0.196N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
8
|
|
5kgf-cm (0.490N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
8
|
|
10kgf-cm (0.981N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
8
|
|
20kgf-cm (1.961N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
8
|
|
30kgf-cm (2.942N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
12
|
|
50kgf-cm (4.903N-m)
|
75
|
20
|
35
|
34
|
15
|
1
|
12
|
|
1kgf-m (9.807N-m)
|
82
|
21
|
40
|
40
|
16
|
5x5
|
18
|
|
2kgf-m (19.61N-m)
|
82
|
21
|
40
|
40
|
16
|
5x5
|
18
|
|
3kgf-m (29.42N-m)
|
82
|
21
|
40
|
43
|
16
|
5x5
|
18
|
|
5kgf-m (49.03N-m)
|
82
|
21
|
40
|
43
|
16
|
5x5
|
18
|
|
10kgf-m (98.07N-m)
|
110
|
35
|
40
|
62
|
30
|
10x8
|
32
|
|
20kgf-m (196.1N-m)
|
110
|
35
|
40
|
62
|
30
|
10x8
|
32
|
|
50kgf-m (490.3N-m)
|
155
|
55
|
45
|
84
|
50
|
12x8
|
47
|
|
100kgf-m (980N-m)
|
155
|
55
|
45
|
84
|
50
|
12x8
|
47
|
|
|
|
|
|
|
|
|
|
|
