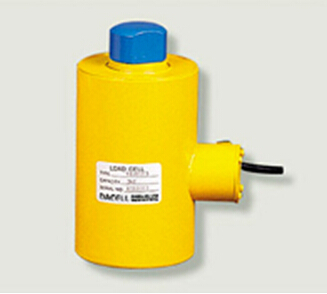

韩国Dacell称重传感器|CX 称重传感器



CX High Precision Accuracy Compression Service. Hopper, Tank Weighing. Protection Class IP67
SPECIFICATIONS
Specifications Accuracy CXH CXM CXG Rated capacity(R.C) 1tf, 2tf, 3tf, 5tf, 10tf, 20tf 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf, 20tf, 30ft, 50ft, 100tf, 200tf, 300tf, 500tf Rated output(R.O) 2.0mV/V±0.1% 2.0mV/V±0.1(50tf~500tf : 1.5mV/V±0.1%) Nonlinearity 0.02% of R.O. 0.05% of R.O. 0.1% of R.O. (200, 300, 500tf : 0.5% of R.O.) Hysteresis 0.02% of R.O 0.05% of R.O 0.1% of R.O. (200, 300, 500tf : 0.5% of R.O.) Repeatability 0.02% of R.O 0.05% of R.O 0.1% of R.O. Zero balance ±1% of R.O. Temperature effect, on rated output 0.03% of LOAD/10℃ 0.1% of LOAD/10℃ Temperature effect, on zero balance 0.03% of R.O./10℃ 0.1% of R.O./10℃ Temperature range, compensated -10~60℃ Temperature range, safe -20~80℃ Terminal resistance input 350±5Ω Terminal resistance output 350±5Ω Insulation resistance bridge/case 5000MΩ Excitation recommended 10V Safe overload 150% R.C. Cable length Φ7mm 4core,3m
DIMENSIONS TABLE	unit:mm
Model Capacity ΦA B ΦC D E F G H RI J ΦK Weight CX 100kgf-1tf (490.3N~9.807kN) 88 107 50 118 M12x1.25 DP15 4 25 9 25 - 24 3kg 2tf (19.61KN) 88 150 66 118 M24x2 DP30 5 42 20 60 - 42 4.5kg 3tf (29.42KN) 88 150 66 118 M24x2 DP30 5 42 20 60 - 42 4.5kg 5tf (49.03KN) 88 150 66 118 M24x2 DP30 5 42 20 60 - 42 4.5kg 10tf (98.07KN) 93 127 80 129 M12x1.75 DP20 2 42 15 140 60 38 5kg 20tf (196.1KN) 93 147 80 129 M12x1.75 DP20 2 50 15 140 60 38 5.5kg 30tf (294.2KN) 93 147 80 129 M12x1.75 DP20 2 50 15 140 60 38 5.5kg 50tf (490.3KN) 137 165 110 170 M12x1.75 DP20 2 75 20 180 80 50 10kg 100tf (980.7KN) 166 210 140 198 M16x2 DP20 2 100 20 200 100 70 28kg 200tf (1.961MIN) 216 250 180 246 M16x2 DP25 2 120 30 300 130 95 45kg 300tf (2.942MIN) 216 320 180 246 M24x3 DP35 2 160 30 600 130 120 50kg 500tf (4.903MIN) 256 400 238 283 M30x3.5 DP50 7 200 20 800 200 170 65kg 1000tf (9.807MN) 295 385 270 247 M24x3 DP35 5 170 25 800 200 220 70kg CX77 200tf (1.961MN) 164 220 140 194 M20X2.5 DP30 5 80 20 600 100 95 45kg 300tf (2.942MIN) 164 250 140 194 M24x3 DP35 5 94 20 600 100 95 30kg 500tf (4.903MIN) 217 270 170 247 M24x3 DP35 7 125 25 600 130 120 55kg
