CB2,CB4,CB5,CB6
|

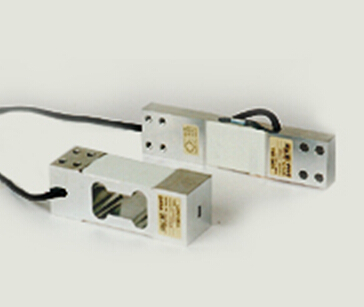

This strain gage load cell has developed newly as a electronic "Scale" for commercial purpose, with the charatestics of high accuracy and low price. Compared with another mechnical means, this load cell provides small displacement.
Due to electronic output, it is easy to treat various treatments.
|
|
|
|
|
|
|
Specifications
|
Accuracy
|
|
CB2
|
CB4
|
CB5
|
CB6
|
|
Rated capacity(R.C)
|
60, 100, 250, 300kgf
(588.4N, 980.7N, 2.452kN, 2.942kN)
|
300, 500kgf
(2.942kN, 4.903kN)
|
30, 50, 100, 150, 300kgf
(294.2N, 490.3N, 980.7N, 1.471kN, 2.942kN)
|
6, 10, 25, 30kgf
(5.884N, 98.07N, 245.2N, 294.2N)
|
|
Rated output(R.O)
|
2mV/V±10%
|
2mV/V±10%
|
1.5mV/V±10%
|
2mV/V±10%
|
|
Nonlinearity
|
0.02% of R.O
|
|
Hysteresis
|
0.02% of R.O.
|
|
Repeatability
|
0.02% of R.O.
|
|
Creep(20min)
|
0.03% of R.O.
|
|
Zero balance
|
±5% of R.O.
|
|
Terminal resistance input
|
420±20Ω
|
|
Terminal resistance output
|
350±2Ω
|
|
Insulation resistance bridge
|
2000MΩ
|
|
Temperature effect on rated output
|
0.02% of LOAD/10℃
|
|
Temperature effect on zero balance
|
0.05% of R.O./10℃
|
|
Temperature range, compen
|
-10~50℃
|
|
Temperature range, safe
|
-10~50℃
|
|
Excitation recommended
|
10V
|
|
Safe overload
|
150% R.C.
|
|
Cable length
|
Φ7 4CORE, 2m
|
Φ5 4CORE, 40Cm
|
|
Allowable Maximum Platform Size
|
400 X 600mm
|
450 X 650mm
|
400 X 500mm
|
300 X 300mm
|
|
Weight(kg)
|
1.5
|
1.6
|
0.9
|
0.4
|
|
Wiring Information
|
EXC+ : RED, EXC- : White, SIG+ : Black, SIG- : Green
|
|
|
|
